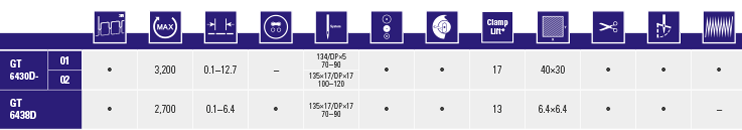

Technical Data

• X–Y -Drive controlled by 2 stepping motors
• Integrated Direct-Drive (550 Watt)
• Machine work without compressed air
• Oil-free needle, no oil stand on material
• Thread ends after cutting about 2.0–2.5 mm
• CB-Hook (Central Bobbin, standard size)
• Data transfer by SD-Memory Card
• 50 customized programs can be stored
• Memory capacity of 210,000 Stitches
• All programs can be increased by 200%
• Stitch length:
  GT6430D: 0.05–12.7 mm;
  GT6438D: 0.5–6.4 mm
• Clamp lift by solenoid:
  GT6430D: 17 mm;
  GT6438D: 13 mm
• Max. sewing speed:
  GT6430D: 3,200 spm;
  GT6438D: 2,700 spm
• 89 ( GT6430D) / 49 (GT6438D) sewing programs
• Button diameter 8–30 mm (GT6438D)

Weight of machine head (incl. electronic control & control panel):
ca. 73 kg
