Typical GC20666

Call for pricing

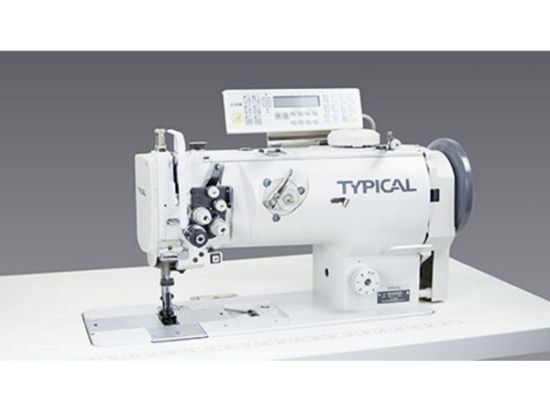

The Typical GC20665 is a two needle compound feed lockstitch sewing machine Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Manufacturer: Typical Sewing Machine
  • Free Delivery Available (Over £50)
  • Contact Us For International Delivery

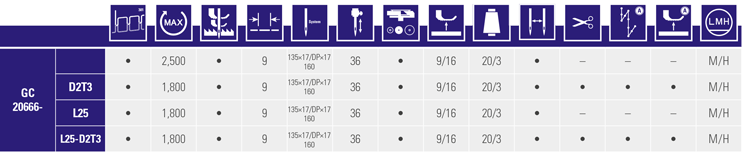

Technical Data

∙ Stitch type 301
∙ Vertical hook
∙ Max. sewing speed 2,500 spm. (GC20666)
∙ Max. stitch length 9 mm
∙ Max. fabric clearance 16 mm with knee lever
∙ Balance wheel 93 mm eff. Dia.

Clearance under the arm
GC20666           260×110 mm
GC20666-L25    660×110 mm

Automatic oil pump lubrication system

Carton dimensions and gross weights for sewing head
∙ GC20666                    74×34×70, 50 kg
∙ GC20666 D2T3           74×34×70, 50 kg
∙ GC20666 L25             115×34×70, 63 kg
∙ GC20666 L25 D2T3    115×34×70, 63 kg

Technical Data

∙ Stitch type 301
∙ Vertical hook
∙ Max. sewing speed 2,500 spm. (GC20666)
∙ Max. stitch length 9 mm
∙ Max. fabric clearance 16 mm with knee lever
∙ Balance wheel 93 mm eff. Dia.

Clearance under the arm
GC20666           260×110 mm
GC20666-L25    660×110 mm

Automatic oil pump lubrication system

Carton dimensions and gross weights for sewing head
∙ GC20666                    74×34×70, 50 kg
∙ GC20666 D2T3           74×34×70, 50 kg
∙ GC20666 L25             115×34×70, 63 kg
∙ GC20666 L25 D2T3    115×34×70, 63 kg
