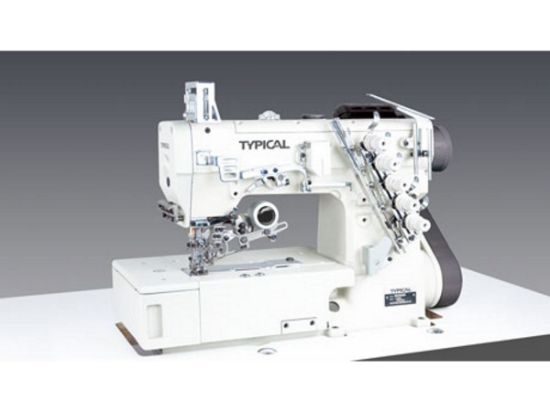

Typical GK32500 Chainstitch Machine

Call for pricing
The Typical GK32500 is a high speed flat bed interlock chainstitch sewing machine Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Manufacturer: Typical Sewing Machine
  • Free Delivery Available (Over £50)
  • Contact Us For International Delivery

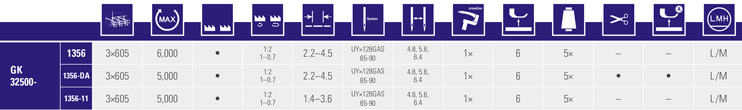

Technical Data

∙ Stitch type 605 (cover stitch)
∙ Max. sewing speed 6,000 spm.
∙ Differential drop feed; Max. stitch length 4.5 mm
∙ Balance wheel 55 mm eff. Dia.

Clearance under the arm
215×113 mm

Fully automatic lubrication system

Carton dimensions and gross weights for sewing head
GK32500:                                                     58×45×63 cm, 48 kg
GK32500-1356DA (with Motor):                  63×45×63 cm, 51 kg

Technical Data

∙ Stitch type 605 (cover stitch)
∙ Max. sewing speed 6,000 spm.
∙ Differential drop feed; Max. stitch length 4.5 mm
∙ Balance wheel 55 mm eff. Dia.

Clearance under the arm
215×113 mm

Fully automatic lubrication system

Carton dimensions and gross weights for sewing head
GK32500:                                                     58×45×63 cm, 48 kg
GK32500-1356DA (with Motor):                  63×45×63 cm, 51 kg
