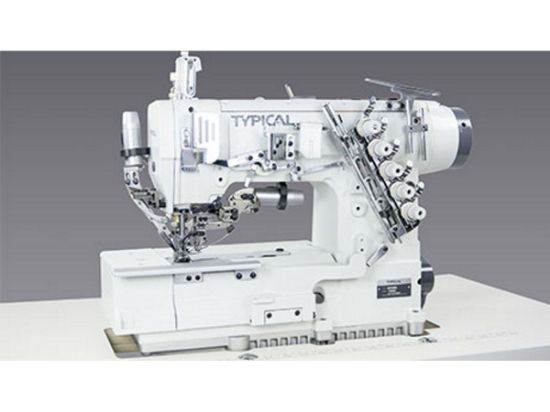

Typical GK350-D Chainstitch Machine

Call for pricing
The Typical GK350-D is a high speed flatbed interlock stitch sewing machine Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Manufacturer: Typical Sewing Machine
  • Free Delivery Available (Over £50)
  • Contact Us For International Delivery

Technical Data


∙ Stitch type 605 (cover stitch)
∙ Max. sewing speed 6,000 spm. (GK350D)
∙ Differential drop feed; max. stitch length 4.5 mm
∙ Balance wheel 55 mm eff. Dia.
∙ Optimized thread guide for individual adjustment of each single needle thread
∙ Available needle distances: 4.8, 5.6 & 6.4 mm.

Clearance under the arm
215x113 mm

Fully automatic lubrication system

Carton dimensions and gross weights for sewing head
GK350D                                      58×45×63 cm, 48 kg
GK350D3 (motor included)           63×45×63 cm, 51 kg

Technical Data


∙ Stitch type 605 (cover stitch)
∙ Max. sewing speed 6,000 spm. (GK350D)
∙ Differential drop feed; max. stitch length 4.5 mm
∙ Balance wheel 55 mm eff. Dia.
∙ Optimized thread guide for individual adjustment of each single needle thread
∙ Available needle distances: 4.8, 5.6 & 6.4 mm.

Clearance under the arm
215x113 mm

Fully automatic lubrication system

Carton dimensions and gross weights for sewing head
GK350D                                      58×45×63 cm, 48 kg
GK350D3 (motor included)           63×45×63 cm, 51 kg
