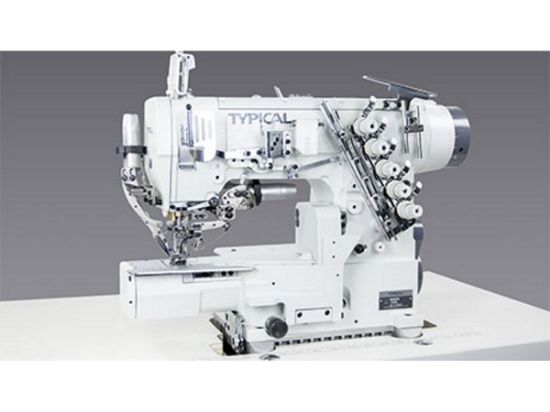

Typical GK370-D Chainstitch Machine

Technical Data

∙ Stitch type 605 (cover stitch)
∙ Max. sewing speed 6,000 spm. (GK370D)
∙ Differential drop feed max. stitch length 3.6 mm
∙ Max. fabric clearance 6 mm
∙ Balance wheel 55 mm eff. Dia.
∙ Optimized thread guide for individual adjustment of each single needle thread

Clearance under the arm
215x113 mm

Fully automatic lubrication system

Carton dimensions and gross weights for sewing head
GK370D                                           58×45×63 cm, 48 kg
GK370D3 (motor included)             63×45×63 cm, 51 kg
