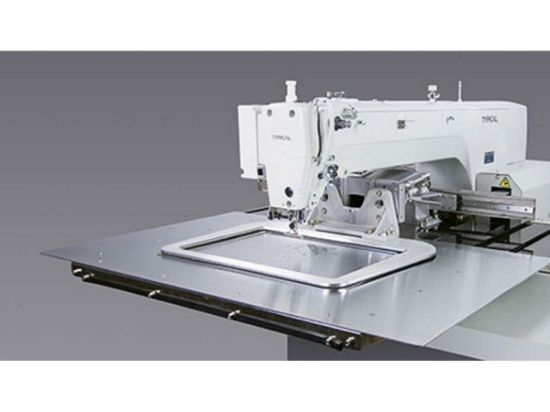

Typical TC3020G / TC6030G Pattern Sewing Machine

Call for pricing
The Typical TC3020G / TC6030G is a electronic lockstitch pattern sewing machine Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Manufacturer: Typical Sewing Machine
  • Free Delivery Available (Over £50)
  • Contact Us For International Delivery

Features and Benefits

∙ High precision step-motors control for very accurate seams,
  stitch length from 0.05–12.7 mm programmable
∙ Powerful integrated direct-drive (230 V, 550 W) with increased torque
∙ CB-hook for increased stitch quality up to thread N° 20/3
∙ Automatic thread cutter and thread wiper for a neat seam start
∙ Vibrating-foot-height programmable for excellent seam quality  - even at cross-seams
∙ Angle of the clamp can be regulated by adjusting screws
∙ By changing clamps centering pins assuring the same position of the sewing clamp
∙ Lifting and lowering of clamp by means of stepping motor,  different lifting heights are programmable (only on TC1310G-S)

Technical Data
∙ Max. sewing speed 2,700 stitches / minute
∙ Sewing area:
  TC-3020G: 300×200 mm
  TC-6030G: 600×300 mm
∙ Power supply: 230 V / Hz, 3 phase 110 V
∙ Average consumption of compressed air:
  TC-3020G-2A: 1.81 l/min
  TC-6030G-2A: 1.90 l/min

Full automatic lubrication system for easy operation

Option
∙ PD-3000 program panel with LCD display
  to create and administrate sewing programs
∙ Automatic machine stop by means of needle thread monitor
∙ Flip clamp for example sewing on labels (TC1310-2A)

Weight of machine head (incl. eTC-1310, TC-2210: ca. 103kg
TC-3020
 ca. 123kg
TC-6030     ca. 150kg
