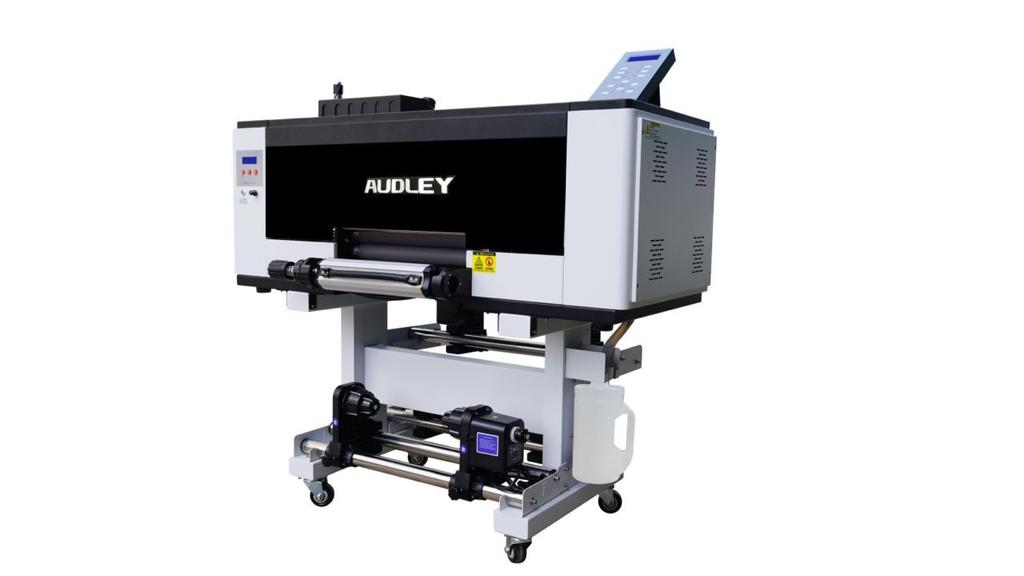

AUDLEY UV DTF 30 CM PRINTER
Delivery date: 3-6 weeks
UV DTF roll to roll printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink. UV DTF make you more easy to entry label market UV Direct print effect with no heating process or drying process required. UV DTF printing is versatile due to the hard type of surfaces the designs can go on, such as metal, leather, wood, paper, plastic, ceramic, glass, etc. It can even be transferred onto irregular and curved surfaces. It is also possible to transfer designs when the object is underwater.
Max printable size 28 cm.
Three pcs Espon F1080-A1 Print head.
Printing resolution Max 2400dpi
Ink UV ink (C M Y K W V) or (C M Y K LC LM W V)
Speed 6 PASS：3sqm/h
UV curing system ,Air cooling system + LED UV lamp (Two)
Rip software Maintop is equipped,Photo print(optional)
Board Senyang board
Weight Machine : 100KG, packing : 130KG
120*50*116cm (Machine size )
152*73*75cm (Packing size )
1. Automatic Wiping and moisturizing System
Automatic wash the printhead when the machine is turned on and keep it wet when turned off to protect printhead blocking
when it's not used and after printing.
2. 4 Colors + White & Varnish.
Equipped with 6 ink tanks, 4 colors of ink can be installed. It can finish exquisite shading with high precision. In addition, using white ink and clear varnish, it
has rich expressive power and fulfills various needs.
Ink shortage automatic alarm.
Manual control lift.
Silicone rubber roller, laminating press & Intlelligent heating.
4. Rear side:
Paper tesion system.
Film feed up system.
Waste film take up system.
