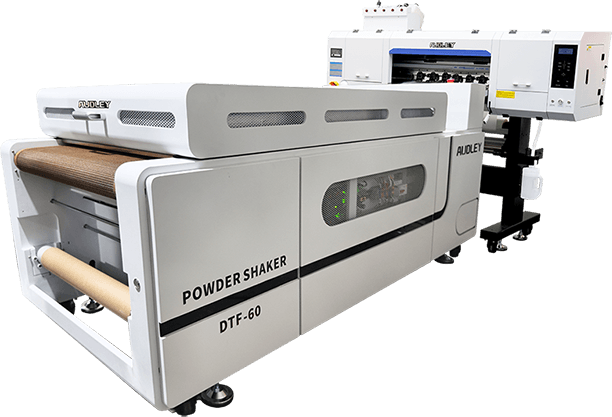

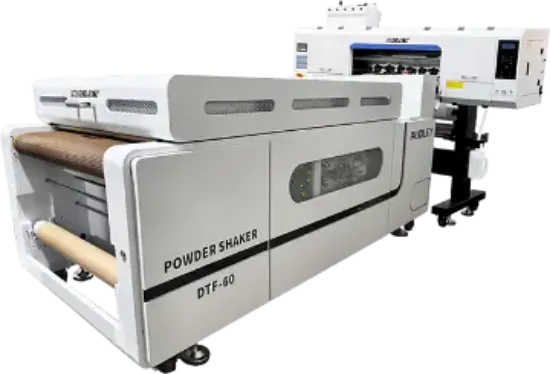

DTF Printer 4 Heads by Audley 60cm with automated shaker

Call for pricing
Free shipping
Manufacturer: Audley
PrintLine.UK DTF - Audley 600 mm printer is a latest generation of the DTG revolution, creating a new DTF film printing process. The max printable area is 58 cm with 600 cm dtf film roll. Max print speed up to 25m2/h . With DTF printing save on ink and labour cost.Fully new upgraded. 1 year on-site warranty. Further service available from our factory trained engineers. Audley Hoson boards. Electric heater for inks. For shipping in Europe please contact us.
+ -

Print Head: Epson PrecisionCore I3200-A1
Max Print Size: 580 mm Print Width.

Printhead guard to improve  and prevent damage to the heads.

Ink Type: C,M,Y,K, + W



Print Head: 4 X  Dual Epson PrecisionCore™i3200-A1

Max Print Size: 580mm Print Width.
Print Speed: Aprox 900-1200 tshirts per hr ,10cm x 10cm size )
Ink Type: C,M,Y,K,+W

Anti White Ink Clog the Head (DTF Design)
White Ink Cartidge White Ink Stirring System
Whith Ink Tube White Ink Circulation System
White Ink High Quality White Ink, Anti white ink clog the head
Parameter of Audley DTF Printer

Lan connection direct to PC(no wireless)

SPECIFICATIONS FOR DTF Printer(4 PCS Epson i3200-A1 print head)
Power  W 1600
Power supply AC Single Phase, 220V, 50HZ
Print head:Brand Epson Japan
 Epson Original i3200-A1 Head
Number of 4 print heads
2 head for 4 colors, 2 head for white
Print head Nozzle nozzle 4*800
Printing Resolution 3200dpi
Operation
Environment
Temperature °C 15-35
Humidity RH 40-70%
Medium
Max medium width 58mm
Medium compatibility General width inkjet medium
Media Heat transfer film
Print Speed
4 Pass 22-25 sqm/hour

6 Pass 18-20 sqm/hour

Size
Max printing size  580 mm
Package Dimension cm 230*74*63cm(L x W x H)
Gross Weight KG 180KG

Ink Type Pigment Ink
Ink Color 5 based colors
Cyan/Magenta/Yellow/blacK
/White
Ink Supply System Siphon Ink Supply System
Ink Capacity 1000ml of each bottle
Color Manage ICC
Technology Piezo-electric photo album machine with Epson printing head
Stoving Two stages heating,forepart and back.(Also can heating separately)
Drying External Drying Fan
Connector Network Interface
Language : English
Computer All Windows System
Software :Cadlink(free)
Warranty One year

Parameter of Shaking Power Machine


Rated Power W 5000
Rated Current A 20A
Power Supply AC Three Phase,
Energy Consumption 2KW-3.5KW
Net Wight 180KG
Gross Weight 200KG
Package Size 126*116*126cm

 Air Purifier:

Builded in (electronic)
