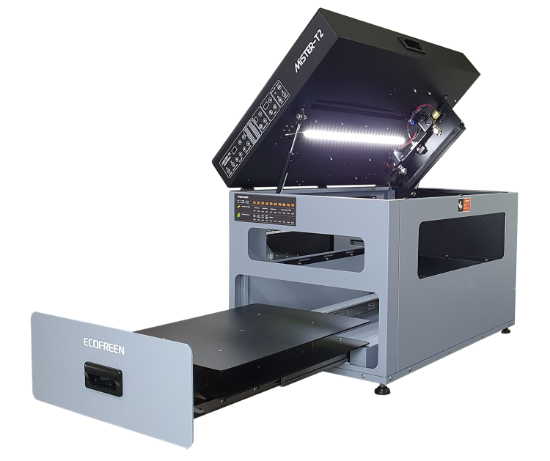

Ecofreen T2 Pre-treatment Machine

See Video Here

MAIN FEATURES:

- Fully Electric Version (No Air Compressure Required)
- Rust Free Structures and Parts (All Aluminum and Stainless Steel Structures)
- Hassel Free Anti Nozzle Drying or Clogging System with Capping Station
- Smart Auto Nozzle Cleaning and Flushing Program
- Consistent Spraying with Single Nozzle
- User Friendly Operation with Speed Chart Guide
- Top Open Design with Easy Maintenance
- No Dripping of Liquids
- Bi-Directional Sparying Mode with Quick Pretreatment
- Adjustable 1 ~ 5 speeds and Spraying Liquid Volume (10 ~ 40ml)
- 12 Months Warranty
- Closed System, Ideal for the operation in a room
- Self-Diagnosis System (Functional Check for Parts in Engineering Mode)

SPECIFICATIONS:

Dimensions 560mm(W) x 800mm(L) x 590mm(H)
Weight 35kgs
Platen Size 40cm x 50cm (16" x 20")
Number of Spray Nozzle Single Nozzle
Maximum Spray Area 40cm x 50cm (16" x 20")
Spray Cycle Time 3 sec ~ 9 sec, by 1 to 5 speed
Power Supply Free Voltage (100V~240V 50/60hz)
Power Consumption 60W
Packing Size 620mm(W) x 875mm(L) x 640mm(H)
Packing Weight 40Kgs
Liquid Consumtion With Minimum Speed : about 30ml
With Maximum Speed : about 10ml
