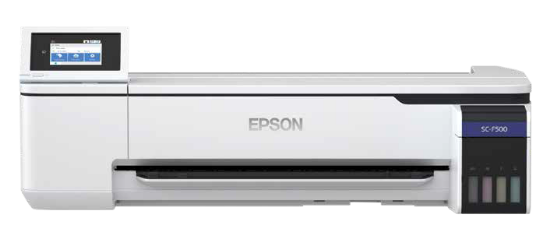

The Epson SC-F500, 24-inch, dye-sublimation printer, developed to help promotional houses, photo labs, poly clothing producers and copy shops increase customer choice through flexible, high-quality printing.
Whether producing printed phone covers, mugs, mouse mats, t-shirts or cushions, the Epson SC-F500 offers fast turnaround times, reliability and a low total cost of ownership, plus it requires no specialist knowledge to set up, operate or maintain.
The Epson SC-F500 forms part of Epson’s complete end-to-end printing solution, which includes inks, software and paper, all designed to work in perfect harmony.
The ability to offer your customers additional services means that you can be a complete supplier, responsive to customer needs. The Epson SC-F500 has been built with ease of use, productivity and efficiency in mind. This is achieved through features that complement Epson’s established dye-sublimation technology, including:
- Refillable ink (140ml bottles )
- Built-in Wi-Fi connectivity
- Media auto-switch (switch between cut sheets and roll media with ease)
- Epson’s LFP Accounting Tool (to accurately calculate print costs)
- Head guard for dust prevention
- 4.3-inch touchscreen
For ink and accessories click here
Product specifications :
Item SC-F500 series SC-F501 series Target customer
Textile and Rigid for small goods Competitors Products
Similar CISS printers are not offered by our usual competitors
(There is a Mutoh OEM competitors (Sawgrass) proposing a similar model: “Virtuoso VJ-628” - 220ml ink cartridges) Max Power Comsuption
Printing: Approx. 22 W
Ready mode: Approx. 8 W Sleep mode: Approx. 1.6 W
Power OFF : Approx. 0.2 W Main Board RAM
1 GB Ink Type
Dye sublimation Ink/Sublimation transfer ink (Epson Ultrachrome DS ink) Ink Bottle capacity
Normal Bk, C, M, Y : 140ml
Normal Bk, C, FP, FY : 140ml Ink Tank capacity
Normal Bk, C, M, Y : 106ml
Normal Bk, C, FP, FY : 106ml Print Head
1 Precision Core Micro TFP print head/ 3200 Nozzles (400 x 2 lines per color) Resolution max.
2400 x 1200 dpi Borderless print
No Driver
Specific - Easy to use for entry user Connectors / interface
USB / LAN / WiFi Print Mode / A1 format For Fabric
70 sec (TBD) → 2pass / 600x1200dpi
260 sec (TBD) → 7pass / 1200x1200dpi
450 sec (TBD) → 12pass / 1400x1200dpi For Rigid
260 sec (TBD) → 7pass / 600x1200dpi
450 sec (TBD) → 12pass / 1200x1200dpi Media Specs Paper type
Roll: Plain paper, coated paper, photo paper, tracing paper, matte film.
Sheet: Plain paper, coated paper, photo paper, tracing paper, matte film. Width
Roll: 210 to 610mm (24”)
Sheet: A4 – A3 Max. Paper length
127 to 180000 mm Paper Thickness
Roll Paper : 0.05mm – 0.21mm
Cut Sheet : 0.12mm – 0.27mm Basis weight
70 to 175 gsm
Epson F500 Media list:
A3 sheets
DS transfer General Pupose A3
297 x 420 mm
100 sheets/set
A4 Sheets
DS transfer General Pupose A4
210 x 297 mm
100 sheets/set
17” Roll
DS transfer General Pupose 432mm
432mm x 30.5m
1 Roll/set
24” Roll
DS transfer General Pupose 610mm
610mm x 30.5m
1 Roll/set
A3 Roll
DS transfer General Pupose A3 Roll
297mm x 30.5m
1 Roll/set
A4 Roll
DS transfer General Pupose A4 Roll
210mm x 30.5m
1 Roll/set
