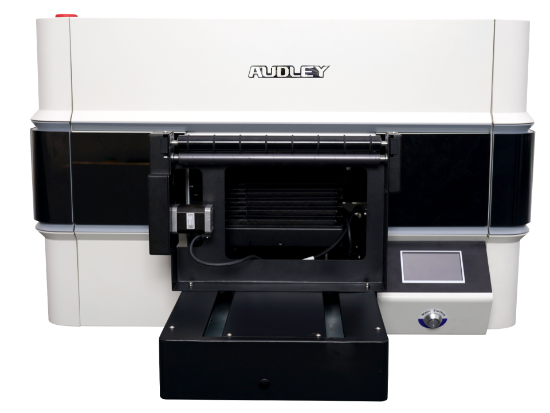

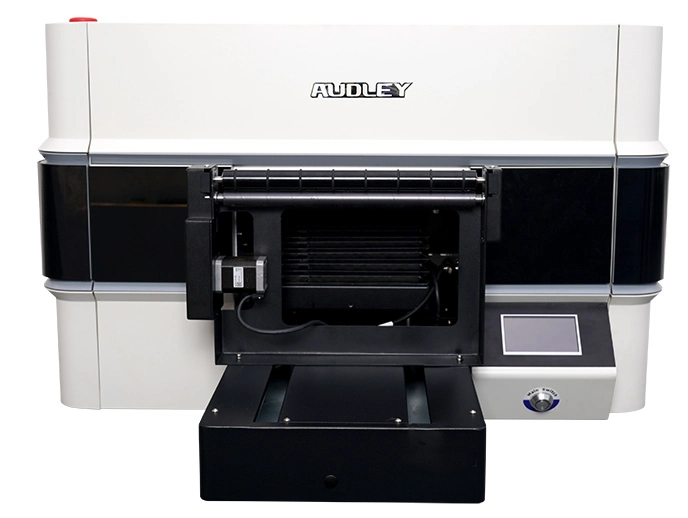

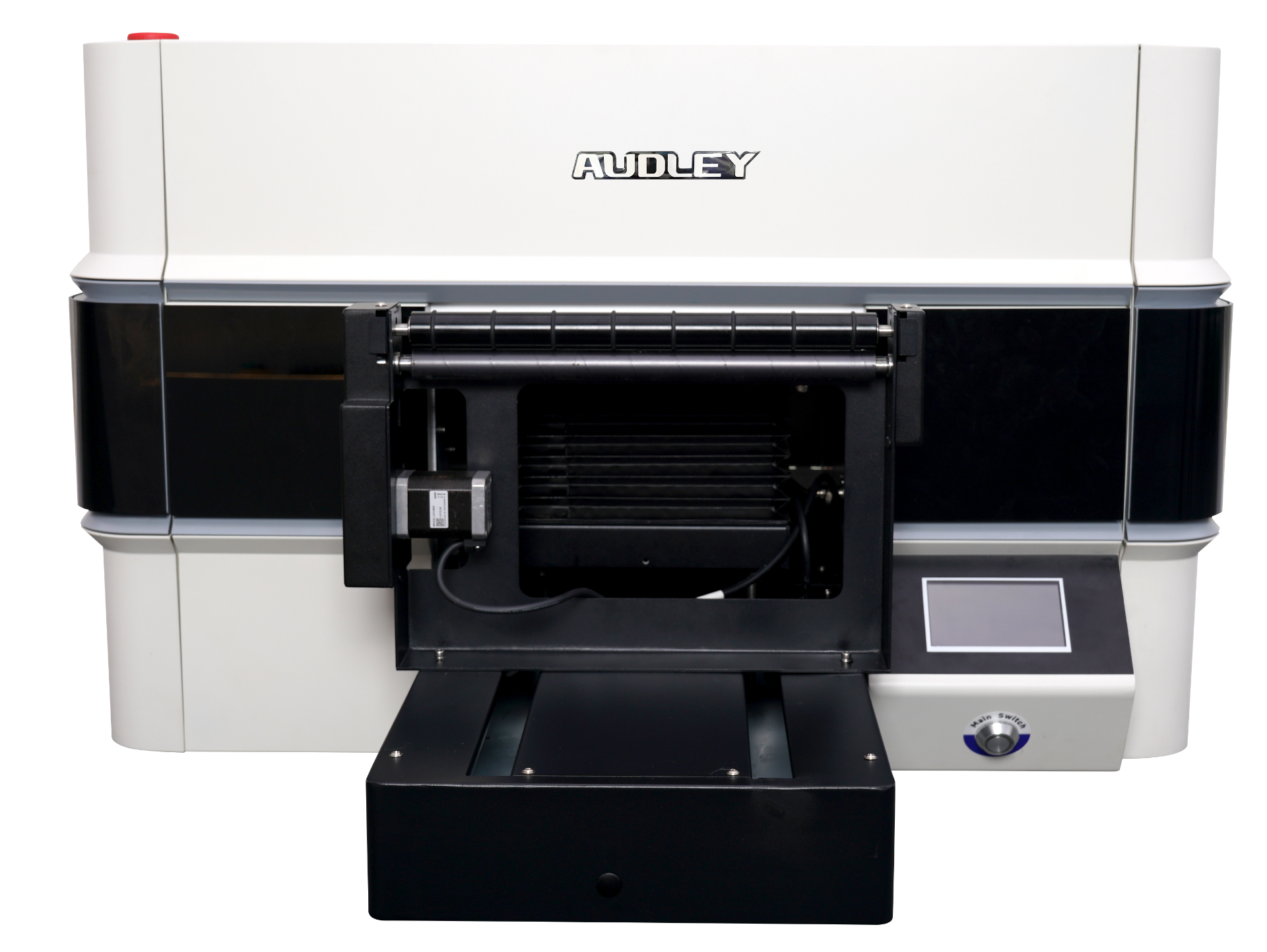

The 30 × 46 cm UV DTF Flatbed Printer with Camera is a versatile professional printing system designed for personalised products, commercial branding, UV DTF transfers, labels and short-run production.
Its automatic scanner-camera positioning system allows compatible products to be placed in different positions across the platen. The camera scans the printing area and helps position the artwork accurately over each item, reducing the need to manufacture individual jigs for every product shape.
This makes the printer ideal for producing customised products quickly and efficiently. Multiple objects can be positioned on the platen during the same production run, provided they fit within the available printing area and height clearance.
Direct-to-Object Flatbed Printing
In flatbed mode, the machine prints directly onto suitable products and materials using CMYK, white ink and varnish. White ink provides opacity on coloured or transparent objects, while varnish can be used to produce gloss highlights, protective finishes and raised effects.
Suitable applications include:
- Acrylic products and signage
- Pens, cards and promotional items
- Phone cases and electronic accessories
- Metal plates and coated aluminium
- Glass and ceramic products
- Wood, PVC, ABS and rigid plastics
- Leather and coated materials
- Packaging, labels and display products
- Personalised gifts and branded merchandise
Surface preparation, primer or adhesion testing may be required on certain materials.
Automatic Camera Positioning
The built-in scanner-camera system is one of the machine’s key advantages. Instead of positioning every product within a dedicated jig, compatible objects can be placed in different locations across the platen.
The camera scans the printing area, detects the products or printed outlines and helps the software align each design with the corresponding object. This is particularly useful for personalised orders, mixed-product printing and short production runs.
For repeated high-volume orders, a jig may still improve loading speed and consistency, but it is not required for many camera-positioned jobs.
Roll-to-Roll UV DTF A+B Film Printing
With the roll-to-roll attachment installed, the printer can produce continuous UV DTF transfers using A and B film.
The artwork is printed onto the adhesive A film using colour, white ink and varnish. The printed A film is then combined with the B transfer film through the laminating and winding system, creating ready-to-use UV DTF transfers.
The completed graphics can be cut, peeled and applied to compatible hard surfaces without using a heat press. This workflow is ideal for:
- Product logos
- Custom decals
- Branding transfers
- Bottle and tumbler graphics
- Packaging labels
- Promotional product transfers
- Short-run and personalised stickers
The roll-to-roll system provides a practical solution for continuous production while retaining the flexibility of a flatbed printer.
Roll-to-Roll UV Sticker Printing
The machine may also be used with suitable UV-compatible self-adhesive roll media to produce conventional stickers, labels and decals.
When standard adhesive media is used, the printer creates a normal peel-and-stick product. When A+B UV DTF film is used, it produces a transferable UV DTF decal. These are separate production methods and require the correct media and RIP configuration.
High-Quality CMYK, White and Varnish Output
The printer uses an Epson I3200(8)-HD printhead and supports:
- Full-colour CMYK printing
- White ink for coloured and transparent surfaces
- Varnish for gloss, texture and raised effects
- UV LED curing during printing
- Fine-detail graphics and small text
- Layered colour, white and varnish workflows
The current product page lists a maximum production speed of approximately 5 m² per hour, depending on print mode, resolution, ink layers and artwork.
Key Features
- 300 × 460 mm printing area
- Automatic scanner-camera positioning
- Print multiple randomly positioned objects
- Reduced requirement for individual product jigs
- Direct-to-object flatbed UV printing
- Roll-to-roll UV DTF A+B film capability
- Roll-to-roll UV sticker and label printing
- CMYK, white and varnish ink configuration
- Epson I3200(8)-HD printhead
- Automatic platen-height adjustment
- UV LED ink-curing system
- Suitable for products up to the permitted machine height
- Flexi RIP software and laptop included
- Suitable for personalised and commercial production
Product Specifications
| Specification | Details |
|---|
| Printing technology | UV LED flatbed and roll-to-roll printing |
| Maximum print area | 300 × 460 mm |
| Printhead | Epson I3200(8)-HD |
| Number of printheads | 1 |
| Ink configuration | CMYK + White + Varnish |
| Ink type | UV LED-curable ink |
| Camera system | Automatic scanner-camera positioning |
| Maximum production speed | Up to approximately 5 m²/hour |
| Media options | Direct objects, UV DTF A+B film and compatible roll media |
| Curing system | UV LED |
| Machine dimensions | 1140 × 860 × 640 mm |
| Packaged dimensions | 1170 × 1040 × 810 mm |
| Packaged weight | Approximately 125 kg |
| Included software | Flexi |
| Included computer | Laptop included |
These specifications match the information currently shown on the product page.
UK Delivery, Installation and Support
We supply, deliver, install and service this 30 cm UV DTF flatbed printer throughout the UK. The machine is supplied with Flexi software and a laptop, with professional setup, operator guidance and ongoing technical support available.
Our UK-based service helps customers get the machine correctly installed and provides continued support for printing, maintenance and production requirements.
