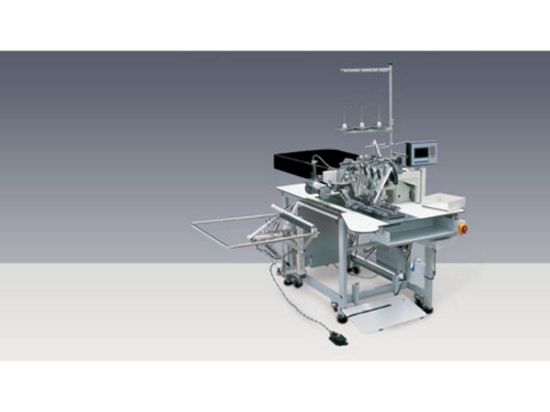

Typical BASS3200

Call for pricing
The Typical BASS3200 is a one pocket welt sewing unit Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Manufacturer: Typical Sewing Machine
  • Free Delivery Available (Over £50)
  • Contact Us For International Delivery

Features & Benefits
TYPICAL BASS 3200 and TYPICAL BASS 3200-S are
Sewing units for welt pockets that allow a high-flexible and efficient production of:
 ∙ Single welt pockets
 ∙ Double welt pockets with and without flap
 ∙ Inside (lining) welt pockets
 ∙ Slant pockets

This ensures highest quality in the production of:
∙ Men´s jackets and trousers
∙ Women blazers
∙ Trendy coats and skirts
∙ Anoraks

Technical Data
Daily output in 8 hours appx. 1,400–1,600 welt pockets

Dimensions
1650×800×1300 mm (LxWxH)
1650×1170×1300 mm (LxWxH) (with stacker)
Table height:    85–115 cm
Weight:           200 kg (220 kg with stacker)

Models
Automatic sewing unit for an efficient and flexible sewing of
double welt and single welt pockets
BASS3200 for rectangular welt pockets
BASS3200-S for rectangular and slanted welt pockets

Standard Equipment
∙ Two needle lockstitch fast seamer TYPICAL GC6842;
  Max. sewing speed 3,000 spm (BASS 3200)
∙ Two needle lockstitch fast seamer TYPICAL GC6845;
  Max. sewing speed 3,000 spm (BASS 3200-S) and split needle bar
∙ Available needle distances from 8–30 mm (in 2 mm steps)
∙ Center knife
∙ LCD graphic control panel for easy understanding and programming
∙ Automatic and programmable corner knifes for an accurate cut, driven by step motor
∙ 5 laser marking lights for a precise and fast positioning of fabric
∙ Photo cell for a precise scanning of fl ap length
∙ Selectable bar tack at the beginning and end or condense stitch
∙ Free programmable microprocessor control for up to 40 different pocket seams
∙ Efka electronic motor AB286, DC1500, 220V
∙ Seam length programmable from 20–200 mm, driven by step motor
∙ Stitch length programmable from 0.5–3.0 mm
∙ Automatic thread cutter for needle thread and bobbin thread
∙ Needle thread monitor
∙ Bobbin thread sensor for recognicion of remaining bobbin thread
∙ Double welt attachment
∙ Sewing head and corner knifes and folding station with swing-out device for easy maintanance
∙ Pocket pouch clamp for loading pocket pouches
∙ Piececounter
∙ Racks for pocket pouch and piping

Options:
∙ Single welt attachment
∙ Vacuum device for precise positioning of fabrics
∙ Vacuum motor 220 V
∙ 2nd. photo cell for a quick change between trouser and jacket production
∙ Flip stacker (jacket production)
∙ Bundle clamp (trouser production)
∙ Ejector roller (trouser production)
∙ Dart stretcher for trousers
∙ Tape feeder and tape cutter programmable for highest quality
∙ Blowing out device for trousers
∙ Pneumatic clamp quick adjustment


Products specifications
Specifications Pocket Welt Sewing Unit
