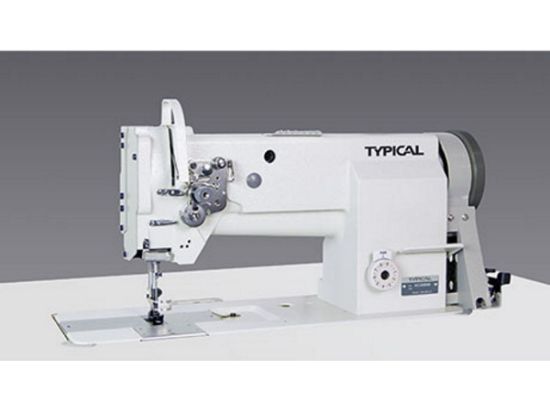

Typical GC20606

Manufacturer: Typical Sewing Machine
The Typical GC20606 is a one and two needle compound feed lockstitch sewing machine Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Call for pricing
+ -

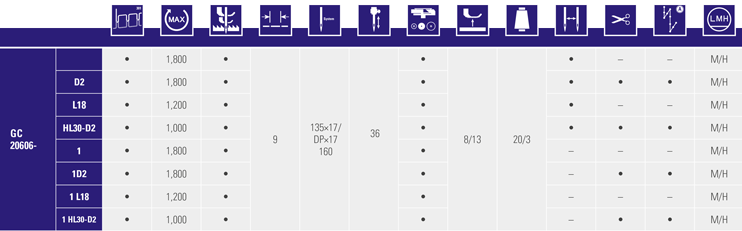

Technical Data

∙ Stitch type 301
∙ Vertical hook
∙ Max. sewing speed 1,800 spm.
∙ Max. stitch length 9 mm
∙ Max. fabric clearance 13 mm with knee lever
∙ Balance wheel 93 mm eff. Dia.

Clearance under the arm
GC20606 / -1 / -1D2 / -D2                  250×100 mm
GC20606-L18 / -1 L18                         457×110 mm
GC20606-HL30 D2 / -1HL30 D2           760×150 mm

Automatic oil pump lubrication system

Carton dimensions and gross weights for sewing head
72×27×67 cm, 47 kg

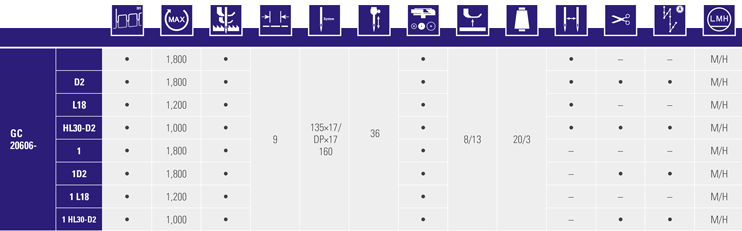

Technical Data
