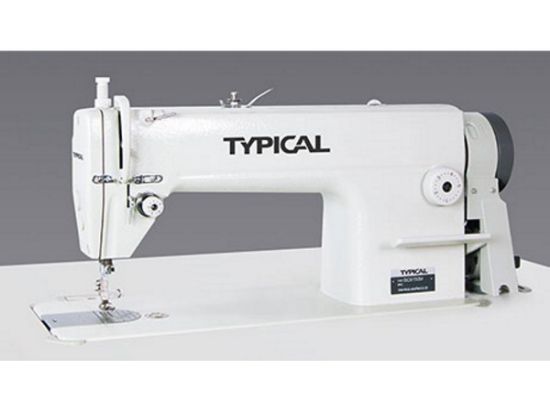

Typical GC6150 Lockstitch Machine

Call for pricing
The Typical GC6150 is a High speed lockstitch machine with drop feed Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Manufacturer: Typical Sewing Machine
  • Free Delivery Available (Over £50)
  • Contact Us For International Delivery

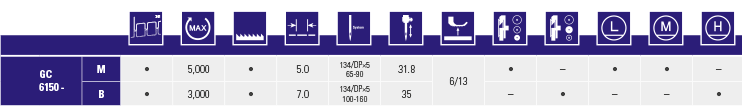

Technical Data

∙ Stitch type 301
∙ Max sewing speed 5,000 spm. (GC6150M)
∙ Max. stitch length 5 mm (GC6150B)
∙ Max. fabric clearance 13 mm with knee lever
∙ Balance wheel 70 mm eff. Dia.

Clearance under the arm
260×130 mm

Automatic oil pump lubrication system

Carton dimensions and gross weights for sewing head
64×28×46 cm, 35 kg

Technical Data

∙ Stitch type 301
∙ Max sewing speed 5,000 spm. (GC6150M)
∙ Max. stitch length 5 mm (GC6150B)
∙ Max. fabric clearance 13 mm with knee lever
∙ Balance wheel 70 mm eff. Dia.

Clearance under the arm
260×130 mm

Automatic oil pump lubrication system

Carton dimensions and gross weights for sewing head
64×28×46 cm, 35 kg
