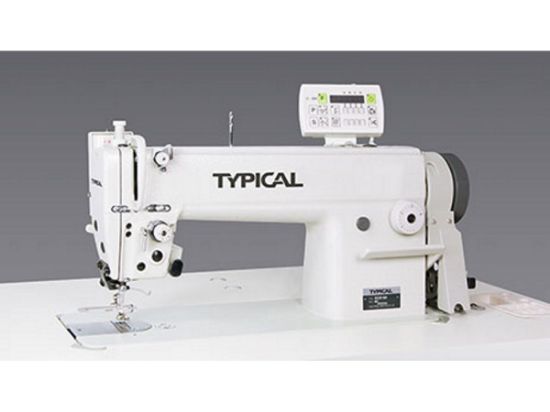

Typical GC6160 Lockstitch Machine
The Typical GC6160 is a High speed lockstitch machine with drop and needle feed Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Technical Data
∙ Stitch type 301
∙ Max sewing speed 4500spm. (GC6160)
∙ Max. stitch length 5 mm (GC6160B)
∙ Max. fabric clearance 13 mm with knee lever
∙ Balance wheel 70mm eff. dia
Clearance under the arm
260mm x 130mm
Automatic oil pump lubrication system
Carton dimensions and gross weights for sewing head
64×28×46cm, 35 kg
