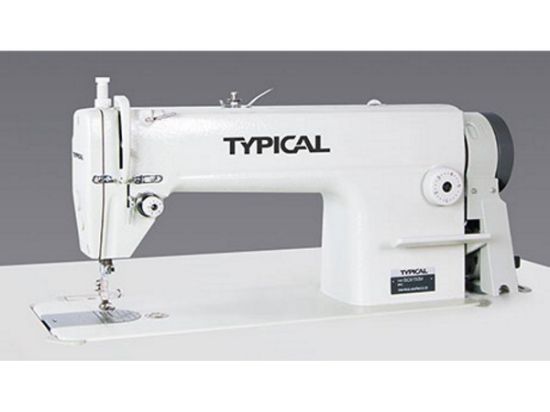

Typical GC6170 Lockstitch Machine

Call for pricing
The Typical GC6170 is a High speed lockstitch machine with drop feed Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Manufacturer: Typical Sewing Machine
  • Free Delivery Available (Over £50)
  • Contact Us For International Delivery

 Technical Data

∙ Stitch type 301
∙ Cutting distance 4.8 mm standard (others on request)
∙ Max. sewing speed 4,000 spm.
∙ Max. stitch length 4 mm
∙ Max. fabric clearance 13 mm with knee lever
∙ Balance wheel 70 mm eff. Dia

Clearance under the arm
260×130 mm

Automatic enclosed lubrication system

Carton dimensions and gross weights for sewing head

GC6170      64×28×46 cm, 35 kg
GC6170D2  66×32×47 cm, 42 kg

 Technical Data

∙ Stitch type 301
∙ Cutting distance 4.8 mm standard (others on request)
∙ Max. sewing speed 4,000 spm.
∙ Max. stitch length 4 mm
∙ Max. fabric clearance 13 mm with knee lever
∙ Balance wheel 70 mm eff. Dia

Clearance under the arm
260×130 mm

Automatic enclosed lubrication system

Carton dimensions and gross weights for sewing head

GC6170      64×28×46 cm, 35 kg
GC6170D2  66×32×47 cm, 42 kg
