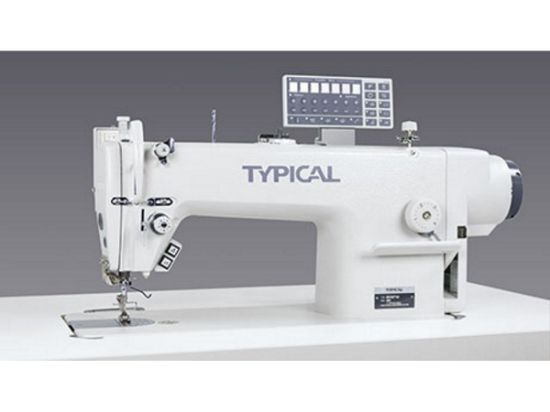

Typical GC6710-MD3/HD3 Lockstitch Machine

Manufacturer: Typical Sewing Machine
The Typical GC6710-MD3/HD3 is a High speed lockstitch machine with drop feed Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Call for pricing
+ -

Technical Data

∙ Stitch type 301
∙ Max. sewing speed 4,500 spm. (GC6710MD3)
∙ Max. stitch length 7 mm (GC6710HD3)
∙ Max. fabric clearance 13 mm (with knee lever)
∙ Integrated direct-drive (300 Watt) for extreme smooth and vibration-free running
∙ Push button on machine head for half-stitch function and integrated sewing light
∙ Motor control unit integrated in machine belt cover, so it´s easier and faster to build up a machine
∙ Reduction of energy consumption

Clearance under the arm
260×130 mm

Automatic enclosed lubrication system

Carton dimensions and gross weights for sewing head
66×32×47 cm, 42 kg

Technical Data

∙ Stitch type 301
∙ Max. sewing speed 4,500 spm. (GC6710MD3)
∙ Max. stitch length 7 mm (GC6710HD3)
∙ Max. fabric clearance 13 mm (with knee lever)
∙ Integrated direct-drive (300 Watt) for extreme smooth and vibration-free running
∙ Push button on machine head for half-stitch function and integrated sewing light
∙ Motor control unit integrated in machine belt cover, so it´s easier and faster to build up a machine
∙ Reduction of energy consumption

Clearance under the arm
260×130 mm

Automatic enclosed lubrication system

Carton dimensions and gross weights for sewing head
66×32×47 cm, 42 kg
