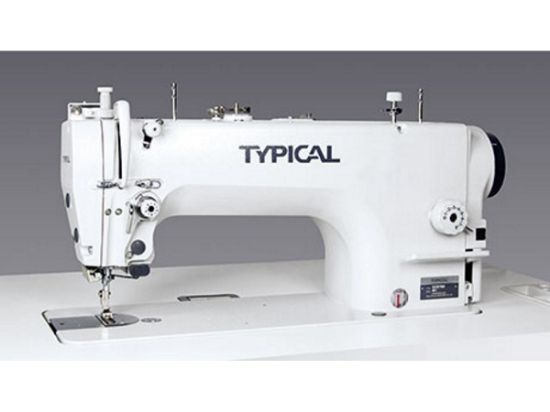

Typical GC6760 Lockstitch Machine

Call for pricing
The Typical GC6760 is a High speed lockstitch machine with drop and needle feed Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Manufacturer: Typical Sewing Machine
  • Free Delivery Available (Over £50)
  • Contact Us For International Delivery

Technical Data

∙ Stitch type 301
∙ Max sewing speed 4000spm. (GC6760MD3)
∙ Max. stitch length 5.5 mm (GC6760HD3)
∙ Max. fabric clearance 16 mm with knee lever
∙ Floating foot fine adjustment to optimize the seam quality
∙ Adjustable take up lever (58-62mm) to optimize the stitch quality on different materials

Automatic enclosed lubrication system

Carton dimensions and gross weights for sewing head
70×38×68 cm, 59 kg




Clearance under the arm
260mm x 130mm

Automatic oil pump lubrication system

Carton dimensions and gross weights for sewing head
64×28×46cm, 35 kg


Technical Data

∙ Stitch type 301
∙ Max sewing speed 4000spm. (GC6760MD3)
∙ Max. stitch length 5.5 mm (GC6760HD3)
∙ Max. fabric clearance 16 mm with knee lever
∙ Floating foot fine adjustment to optimize the seam quality
∙ Adjustable take up lever (58-62mm) to optimize the stitch quality on different materials

Automatic enclosed lubrication system

Carton dimensions and gross weights for sewing head
70×38×68 cm, 59 kg




Clearance under the arm
260mm x 130mm

Automatic oil pump lubrication system

Carton dimensions and gross weights for sewing head
64×28×46cm, 35 kg
