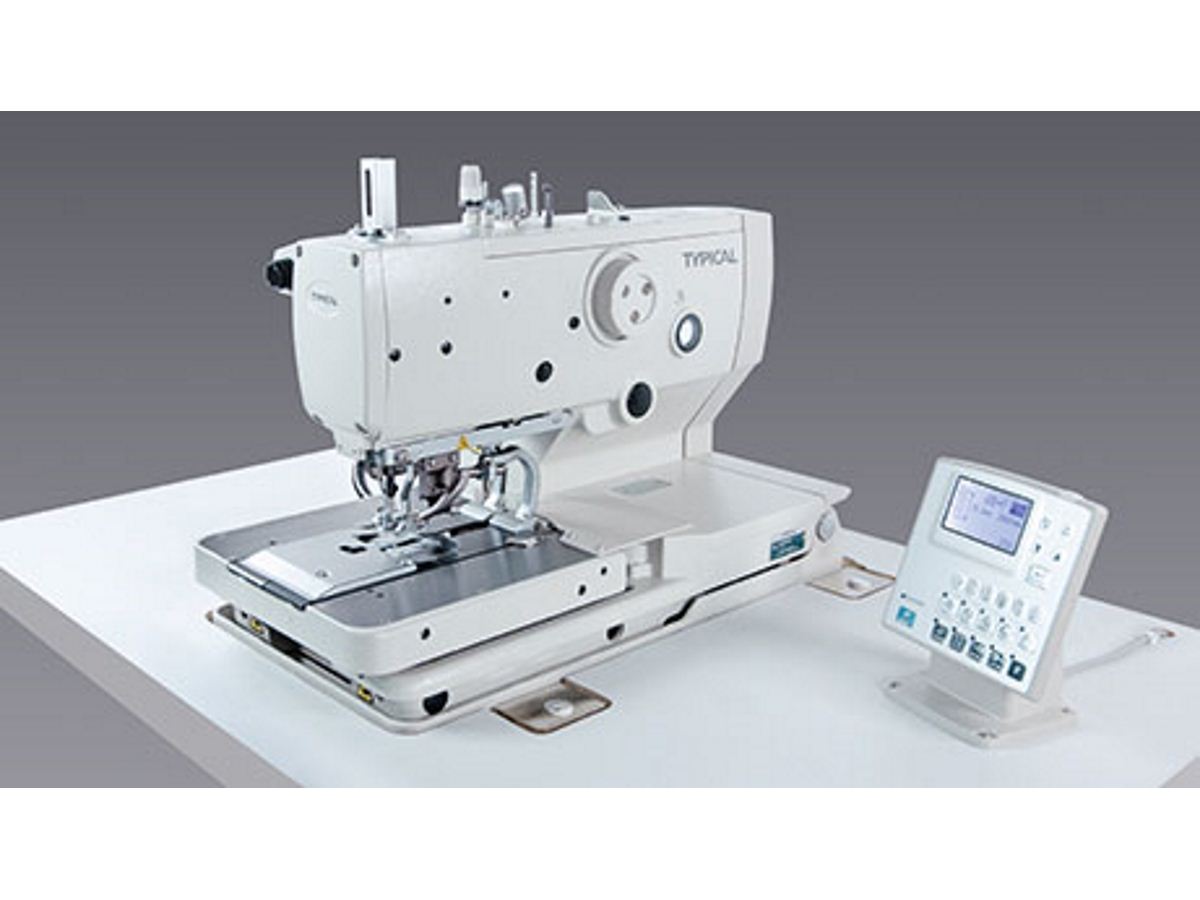

Typical GT9820

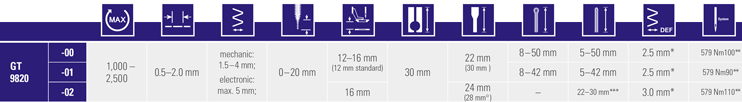

Technical Data

∙ Max. sewing speed 2,500 stitches / minute
∙ Max. stitch length 2.0 mm
∙ Zig-zag width mechanical 1.5-4 mm; electronic max. up to 5.0 mm
  delivery status is 2.5 mm (GT9820-00 & GT9820-01) or 3 mm (GT9820-02);
∙ Feed mechanism: intermitted 3 axis stepping motors
∙ Integrated direct-drive (550 W / 230 V)
∙ Power supply: 230 V / Hz, 3 phase 110 V
∙ Consumption of compressed air: ca. 44 liter/minute with
  about 8 button holes / minute

Fully automatic lubrication system for easy operation

Weight of machine head (incl. electronic control & control panel):
ca. 136 kg
