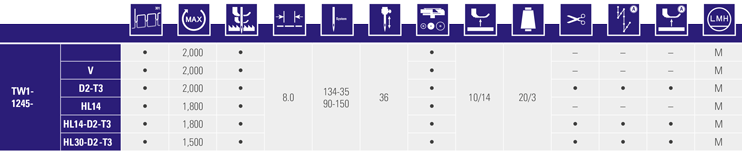

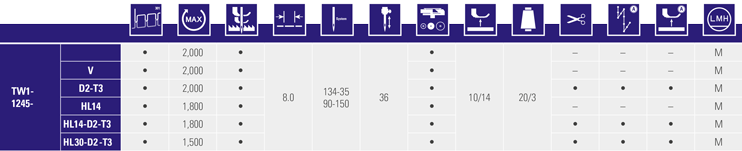

Technical Data

∙ Stitch type 301 lock stitch
∙ Max. sewing speed 2,000 spm (TW1-1245 / -V / -D2-T3)
∙ Max. stitch length 8.0 mm
∙ Max. top feed stroke 7.0 mm
∙ Max. fabric clearance 14 mm
∙ Needle system 134–35
∙ Needle size Nm 90–150
∙ Balance wheel 80 mm eff. Dia.
∙ Recommended motor power minimum 0.55 kW

Clearance under the arm
TW1-1245                257×110 mm
TW1-1245-HL14      365×130 mm
TW1-1245-HL30      750×130 mm

Automatic hook lubrication

Carton dimensions and gross weights for sewing head
TW1-1245                     63×28×60 cm       44 kg
TW1-1245-HL14           75×30×62 cm       53 kg
TW1-1245-HL30           123×41×65 cm     120 kg
