Typical TW1-591 / TW2-574

Call for pricing

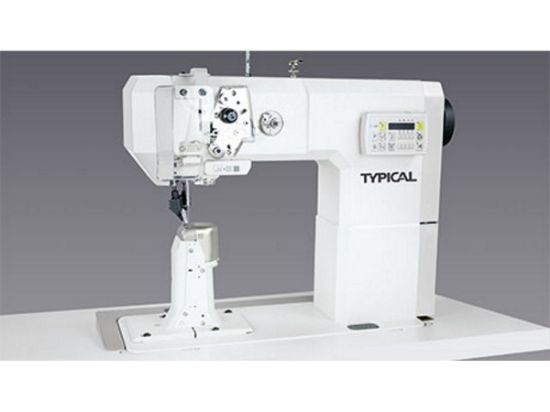

The Typical TW1-591 / TW2-574 is a one and two needle post bed lockstitch sewing machine Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Manufacturer: Typical Sewing Machine
  • Free Delivery Available (Over £50)
  • Contact Us For International Delivery

Technical Data

∙ Stitch type 301
∙ Max. sewing speed 3,000 spm.
∙ Max. stitch length 7 mm
∙ Max. fabric clearance 10 mm with knee lever
∙ Balance wheel 65 mm eff. Dia.
∙ Recommended motor power 0.7 kW
∙ Roller foot diameter 30 mm (Option: 25/35 mm)

Clearance under the arm
260×290 mm

Automatic lubrication system and adjustable hook lubrication

Carton dimensions and gross weights for sewing head
TW1-591, TW2-574                      73×39×70 cm;  65 kg
TW1-591-D3, TW2-574-D3          73×39×70 cm; 74.5 kg




Technical Data

∙ Stitch type 301
∙ Max. sewing speed 3,000 spm.
∙ Max. stitch length 7 mm
∙ Max. fabric clearance 10 mm with knee lever
∙ Balance wheel 65 mm eff. Dia.
∙ Recommended motor power 0.7 kW
∙ Roller foot diameter 30 mm (Option: 25/35 mm)

Clearance under the arm
260×290 mm

Automatic lubrication system and adjustable hook lubrication

Carton dimensions and gross weights for sewing head
TW1-591, TW2-574                      73×39×70 cm;  65 kg
TW1-591-D3, TW2-574-D3          73×39×70 cm; 74.5 kg
