Typical TW3 - P335

Call for pricing

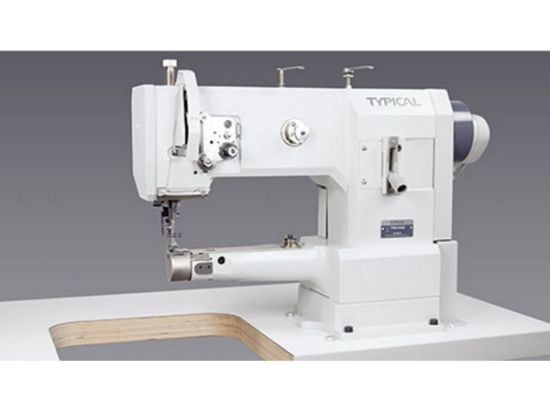

The Typical TW3-P335 is a cylinder arm compound feed lockstitch sewing machine. Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Manufacturer: Typical Sewing Machine
  • Free Delivery Available (Over £50)
  • Contact Us For International Delivery

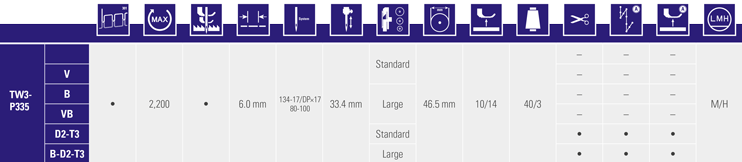

Technical Data

∙ Stitch type 301 lock stitch
∙ Max. sewing speed 2,200 spm
∙ Max. stitch length 6.0 mm
∙ Max. top feed stroke 7.0 mm
∙ Max. fabric clearance 14 mm
∙ Needle system 134–17 DP×17
∙ Needle size Nm 80–100
∙ Balance wheel 80 mm eff. Dia.
∙ Recommended motor power minimum 0.55 kW
∙ Cylinder arm diameter 46.5 mm

Clearance under the arm
257×110 mm

Lubrication system

Carton dimensions and gross weights for sewing head
63×28×60 cm; 44  kg
