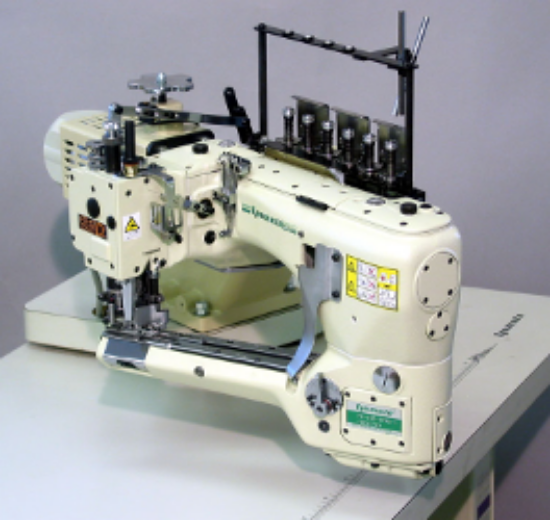

Yamato FD62 Flatseamer
FD62DRY 4 Needle 6 Thread Feed-off-the-Arm-oil free Flatseamer. Yamato FD-62DRY has been developed for further advanced protection for your garments against oil stain, without sacrificing machine performance, for those who requires flatseam in general, especially, high performance athletic garments and high quality intimate garment manufacturers. Unique "Magic Dry" technology ( = non-liquid lubrication inside sealed sewing head) has been introduced to achieve the feature. New features of FD-62DRY are Sealed sewing head area and "Magic DRY"technology.Non-liquid Lubrication is introduced inside the housing right above sewing area for minized risk for oil leakage. Normal Fluid Lubrication have been introduced for the other part of the machine for smooth run and long life. By this way, you can enjoy stain-free finish, optimal machine performance, and long life.
- High-tech metal surface treatment for less friction have been introduced to each moving parts in and around sewing head area and minimize necessity of lubrication.
- Special grease, which transform itself from solid to heavy fluid and vice versa, according to machine's running status, is introduced for optimal lubrication to each moving parts inside sewing head.
F D - 6 2 D R Y - 0 7 M S
4 Needle Both Cut Flat Seamer. Features: Equipped with Spreader and Both-Cutter.Applications: Especially for light weight material. Advantages: Smoothly sewing lighter fabric with using New Lap Former and pitch of Feed Dogs is coarse.
F D - 6 2 D R Y - 0 1 M R / M S
F D - 6 2 D R Y - 0 2 M R / M S
4 Needle Flat Seamer. Features: Equipped with Spreader. Cut one side fabric edge. Advantages:Closing sleeves of T-shuts or the like Crotch seam on brief, shirts, and medium weight fabrics. standard: cut left side fabric edge. option:cut right side fabric edge.
F D - 6 2 D R Y - 0 3 M R / M S
4 Needle Flat Seamer For Inserting Tape.Features: Without spreader. Cut one side fabric edge.Advantages: Attaching tape on front opening of brief, under long pants etc..Finish width of tape: 10mm
F D - 6 2 D R Y - 1 2 M R / M S
F D - 6 2 D R Y - 1 2 H R / H S
4 Needle Both Cut Flat Seamer.New developed mechanism and new designed sewing parts enable this machine to make positive feeding to make smooth operation even on different thick portion. 2 different type is available according to material to be sewn FD-62-12MR / MS:For light weight - medium weight material such as shoulder joining of t-shirts etc.FD-62-12HR / HS: For medium heavy weight - heavy weight material such as crotch seam of men's briefs etc.
F D - 6 2 - 2 2 M R / M S
4 Needle Both Cut Flat Seamer.New developed for Athletic garments. Optimal Overlap for both top and bottom even in case of joining different type of fabric. "Pucker-Free" Finish for long distance seaming along lengthwise grian of fabric
