Integrated bobbin winder
The on-board bobbin winder (M Class bobbin) makes it convenient to wind coordinating bobbin threads for your projects, independent of machine operation.
Unique threading path
The well-positioned spool holders and forward threading path are easy to reach and simple to follow.
Unique user interface
Machine settings and functions are controlled using an intuitive touch screen navigation system with integrated tutorials and help functionalities.
The machine can be fully operated from the front. Dual handwheels (front and back) for easy manual needle positioning. Front handwheel is disengaged when using the electronic needle positioner.
BERNINA Longarm Stitch Regulation
Master hand-guided quilting quickly with the assistance of the integrated BERNINA Longarm Stitch Regulator, available on sit-down and frame models. The BERNINA Longarm Stitch Regulator is simple to activate and customizable using the machine’s touch screen. A manual mode with no stitch regulation is also available.
Unique tension control
A BERNINA exclusive, electronically adjustable and numeric. Easily adjust thread tension and track settings for your favorite thread types and combinations, no external tension assembly required.
The 8-way, fully-adjustable handles, which are standard for the Q 24 frame model, place the most frequently used functions at your fingertips.
50 bright LED lights along the length of the machine and above the needle illuminate the quilt for enhanced visibility.
Rear handles and screen (optional)
Edge-to-edge pantograph-style quilt designs can be easily followed with the convenient rear handle system. Access control of the machine via the touch screen mounted to the back of the machine.
Quiet gear mesh design and internal motor. High-speed sealer bearings require no oil maintenance.
Throat space - 24" (610mm)
Color touch screen - 4.3" (109mm)
Illumination of the full length of the freearm
Hook system - M Class Rotary Hook
Thread tension - Electronically/ digitally adjustable
Presser foot lift - Electronic
Upper thread break sensor
BERNINA Longarm Stitch Regulator functionality
Connection (basic) - USB
Connection (additional purpose) - HDMI
Update-able - Yes
Sewing speed maximum - 2,200 SPM
Stitch length minimum - 1.05mm
Stitch length maximum - 25.4mm
User profiles -5
Bobbin Thread Indicator
On-board bobbin winder
Compatible with domestic machine needles
Compatible with BERNINA free-motion feet

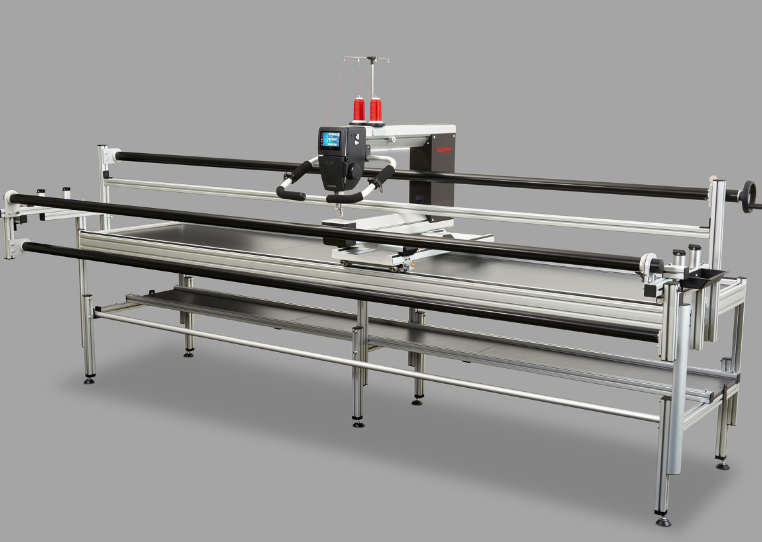

For excellent quilting results, we have developed an ideal, high-quality frame, which is available in three different sizes (Large/Classic/Small). All three frames are constructed from anodized aluminum for a lightweight, yet sturdy frame that can handle the weight, size and speed of the BERNINA Longarm machines with ease.
Adjustable foot pads for perfect leveling
Continuous X and Y axis track system with no joints
Angled tracks and wheel axles for accurate and smooth movement of the sew head to allow even quilting
Friction-free 16-wheel system
Leg system for maximum stability
Multi-step ratchet system for perfect fabric tension
Integrated latch system for maximum fabric holding power, yet easy release
Pivot pick-up of magnetically-secured top rail, which allows fabric separation to smooth batting
Dead bar for perfect fabric height no matter the length of your quilt
Large diameter rails eliminate rail flex when tensioning the quilt
Heavy duty canvas leaders with positioning markings for years of quilt loading ease
Pantograph tabletop to easily align your rolled patterns
4 bungee clamps to align every quilt to perfection
Convenient tool trays for your longarm quilting tools
Frame Size Information
|Size (Length x Depth||13'x3.9' (4.00x1.2,m)||12'x3.9' (3.60x1.2)||9'x3.9' (2.75x1.2m)|
|Leader||132" / 11' (ca. 3.36m)||120" / 10' (ca.3.07m)||83" / 6.9' (ca. 2.12m)|
|Adjustable Working height||35" to 47" (0.9 to 1.2m)||35" to 47" (0.9 to 1.2m)||35" to 47" (0.9 to 1.2m)|
|Total Weight||532 to 552 lbs (160 to 250 kg)||330 to 508 lbs (150 to 230 kg)||330 to 508 lbs (150 to 230 kg)|
|Number of Legs||6||6||4|
